As a leading supplier of hydraulic rod seals, I've delved deep into the world of these crucial components. Hydraulic rod seals play a vital role in hydraulic systems, preventing fluid leakage and ensuring the smooth operation of machinery. One of the key aspects that significantly impacts their performance is the cross - sectional shape.
Common Cross - Sectional Shapes of Hydraulic Rod Seals
O - Ring
The O - ring is perhaps the most well - known cross - sectional shape for hydraulic rod seals. It has a circular cross - section, and its simplicity is one of its greatest advantages. O - rings are made from various elastomeric materials such as nitrile rubber (NBR), fluorocarbon rubber (FKM), and silicone rubber (VMQ).
NBR O - rings are popular due to their good resistance to mineral oils, water - based fluids, and a wide range of temperatures. They are commonly used in general industrial hydraulic applications. FKM O - rings, on the other hand, offer excellent resistance to high - temperature environments and aggressive chemicals, making them suitable for demanding applications in the aerospace and chemical industries.
The sealing principle of an O - ring is based on compression. When installed in a groove, the O - ring is compressed, creating a radial force that seals against the rod and the housing. However, O - rings have some limitations. They may experience extrusion under high - pressure conditions, leading to seal failure. To overcome this, backup rings can be used in conjunction with O - rings.
Rectangular Cross - Section
Seals with a rectangular cross - section, also known as square rings in some cases, are another common type. They offer a larger sealing surface area compared to O - rings. This increased surface area can provide better sealing performance, especially in applications where high - pressure differentials are present.
Rectangular cross - section seals are often used in applications where the seal needs to withstand side loads or where precise alignment is required. For example, in some hydraulic cylinders used in construction equipment, rectangular cross - section seals can ensure reliable sealing even when the cylinder is subjected to uneven forces.
D - Ring
The D - ring gets its name from its cross - sectional shape, which resembles the letter "D". This shape combines the advantages of a larger sealing surface on one side (the flat side of the "D") and a more rounded profile on the other. D - rings are often used in applications where one - sided sealing is critical.
In hydraulic systems, D - rings can be used to seal against a flat surface on one side while providing a smooth contact with the rod on the other. They are particularly useful in applications where there is a need to prevent fluid leakage in a specific direction, such as in some valve applications.
U - Cup
U - cup seals have a U - shaped cross - section. They are designed to provide a dynamic seal between the rod and the housing. The lips of the U - cup seal are flexible and can adapt to the movement of the rod. U - cup seals are commonly used in hydraulic cylinders, where they can effectively prevent fluid leakage during the reciprocating motion of the rod.
There are different types of U - cup seals, including single - acting and double - acting ones. Single - acting U - cup seals are designed to seal in one direction, while double - acting U - cup seals can seal in both directions. The material selection for U - cup seals is crucial, as it affects their wear resistance, chemical resistance, and sealing performance.
Impact of Cross - Sectional Shape on Performance
Sealing Efficiency
The cross - sectional shape of a hydraulic rod seal directly affects its sealing efficiency. Seals with a larger sealing surface area, such as rectangular cross - section seals, can provide better sealing under high - pressure conditions. O - rings, while having a smaller sealing surface area, can still provide effective sealing in low - to medium - pressure applications.
The flexibility of the seal's cross - section also plays a role in sealing efficiency. U - cup seals, for example, can conform to the rod's surface during movement, ensuring a continuous seal. In contrast, rigid cross - section seals may be more prone to leakage if there are minor surface irregularities on the rod.
Wear Resistance
Wear resistance is another important factor influenced by the cross - sectional shape. Seals with a more rounded cross - section, like O - rings, tend to have less contact pressure at the sealing interface, which can reduce wear. However, in high - speed applications, the friction generated between the O - ring and the rod may still cause wear over time.
Rectangular cross - section seals and U - cup seals, which have a larger contact area, may experience more wear in some cases. To improve wear resistance, these seals can be made from materials with high abrasion resistance, such as polyurethane.
Pressure Resistance
The ability of a hydraulic rod seal to withstand high pressures is closely related to its cross - sectional shape. Seals with a more robust cross - section, such as D - rings and rectangular cross - section seals, can better resist extrusion under high - pressure conditions. O - rings may require backup rings to enhance their pressure resistance.
Our Product Range
As a hydraulic rod seal supplier, we offer a wide range of seals with different cross - sectional shapes to meet the diverse needs of our customers.

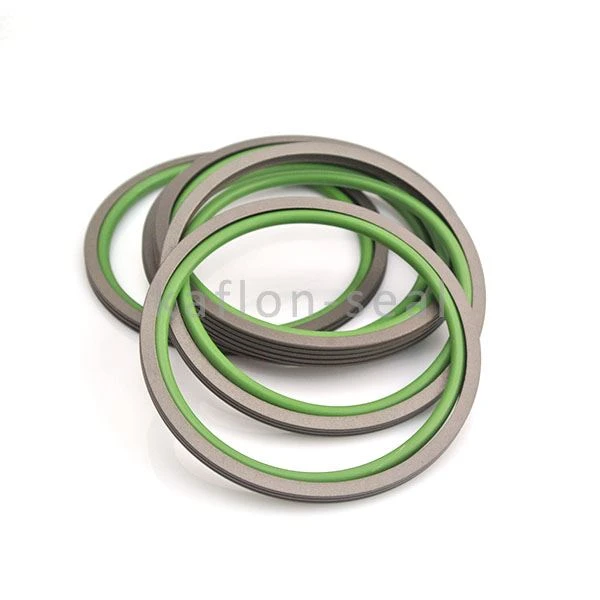

For forklifts and handling machinery, we recommend our Glyd Seal For Forklifts & Handling Machinery. These seals are designed to provide reliable sealing in the harsh operating conditions of these machines. They are available in various cross - sectional shapes, including O - rings and U - cup seals, to ensure optimal performance.
Our Low Stick And Slip Glyd Ring is another popular product. It is designed to reduce stick - slip phenomena, which can cause jerky movement in hydraulic systems. These rings are available in different cross - sectional shapes, allowing customers to choose the one that best suits their application requirements.
We also offer Linear Rod Seal for applications where precise linear motion is required. These seals are carefully engineered to provide a high - level of sealing performance, regardless of the cross - sectional shape selected.
Conclusion and Call to Action
The cross - sectional shape of a hydraulic rod seal is a critical factor that affects its performance in terms of sealing efficiency, wear resistance, and pressure resistance. By understanding the different cross - sectional shapes available and their characteristics, customers can make informed decisions when selecting the right seal for their hydraulic systems.
At our company, we are committed to providing high - quality hydraulic rod seals with various cross - sectional shapes. Whether you are in the construction, automotive, or aerospace industry, we have the right seal for your application. If you are interested in our products or have any questions about hydraulic rod seals, please feel free to contact us for a detailed discussion and procurement negotiation. We look forward to serving you and helping you find the best sealing solutions for your needs.
